SKU: 84-076

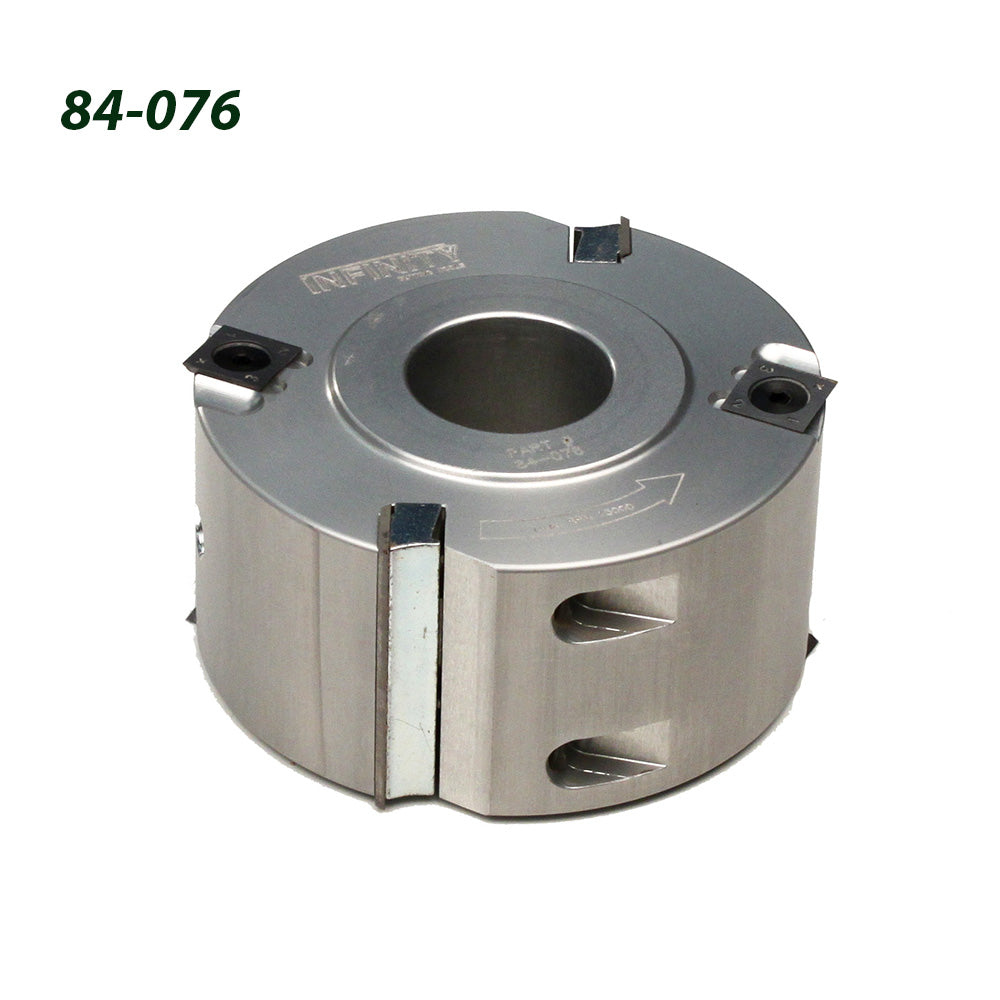

Infinity Tools Insert-Pro Rabbeting Shaper Cutter, 1-1/4" Bore

Regular price $199.90

Insert-Pro Rabbeting Shaper Cutter – Clean Rabbets and Straight Edges

Cut crisp rabbets and straight, clean edges with the Infinity Tools Insert-Pro Rabbeting Shaper Cutter. Its 2" high carbide knives cut the rabbet shoulder, while four-sided carbide spur inserts at the top and bottom slice the wood surface for a cleaner finish on both sides of the cut.

Use the cutter with an offset fence to straighten board edges like a jointer. Its anodized aluminum body holds replaceable carbide cutting edges, and each four-sided spur insert can be rotated to expose a fresh edge.

Features Include:

  • 2" high carbide knives for cutting rabbets and straight edges

  • Four carbide spur inserts that score the wood surface at the top and bottom of the cut

  • Four usable cutting edges on each spur insert

  • Anodized aluminum cutter body

  • Jointing capability when used with an offset fence

  • Four spur inserts measuring 14 mm × 14 mm × 2 mm each

  • Compatible with the RUB-106 rub collar (sold separately; select the 4" outside diameter)

Item: 84-076

Frequently Asked Questions

What is the Insert-Pro Rabbeting Shaper Cutter used for?

It cuts clean, straight rabbets and can also serve as a jointer when used with an offset fence. See the full Insert Pro shaper cutters line.

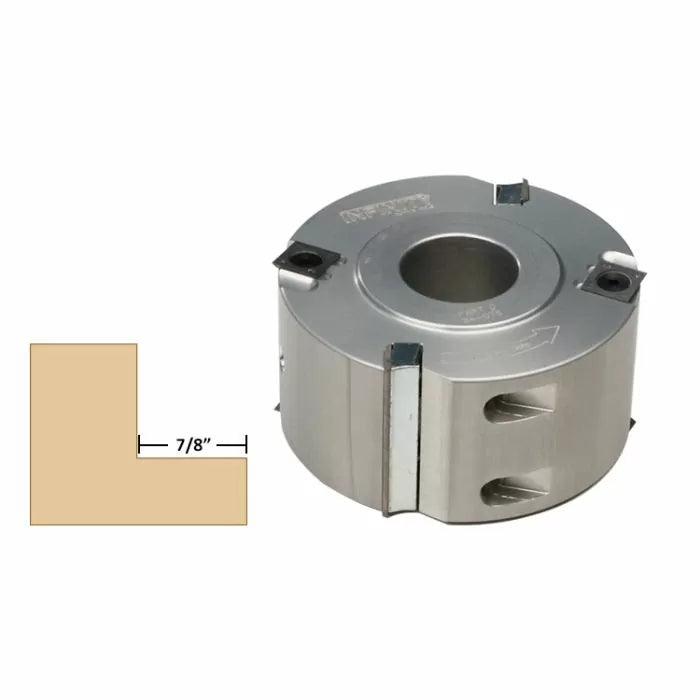

How deep and wide a rabbet can it make?

It makes rabbets up to 7/8" deep and 2" wide.

What bore and cutter diameter does it have?

It has a 1-1/4" bore and a 4" cutter diameter with a 2" cutter height.

What knives are included?

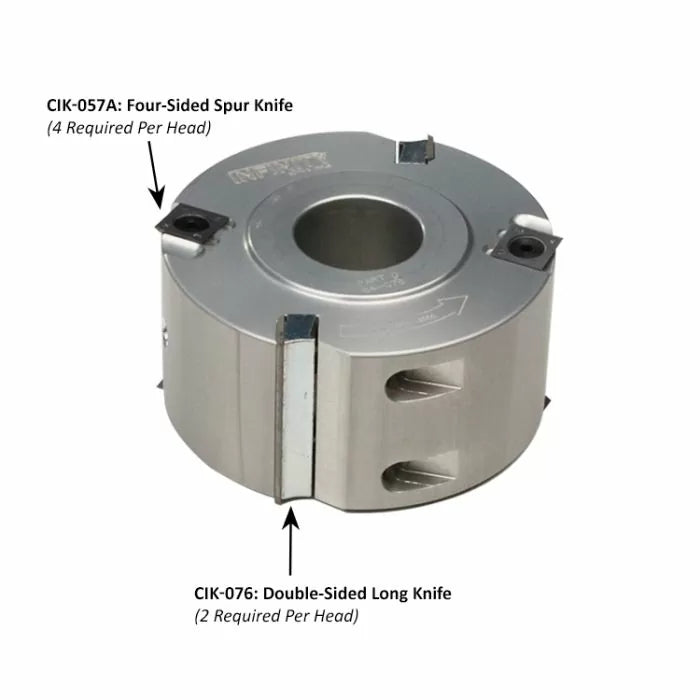

Item 84-076 includes (1) 4" cutter head, (2) carbide replaceable 2" long knives (CIK-076), and (6) carbide replaceable 4-sided spur knives at 14mm x 14mm x 2mm (CIK-057A).

What do the four-sided spur knives do?

The four-sided spur knives mounted on the top and bottom score the wood surface ahead of the cut, producing an extra-clean rabbet. Browse related shaper cutters & accessories.

Can this cutter be used as a jointer?

Yes. Used with an offset fence as a guide, it works as an excellent jointer for truing the edges of your stock.

Can I replace the knives individually?

Yes. The knives can be replaced individually as needed, so you only swap the inserts that are worn.

Why are the spur knives four-sided?

Being four-sided means each insert offers multiple fresh cutting edges; you can rotate to a new edge before needing a replacement, extending knife life.

What projects is this rabbeting cutter good for?

It is well suited to cabinet backs, frame rabbets, panel recesses, and edge jointing. Explore matching Insert Pro shaper cutters.

What machine is required to use this cutter?

It is a 1-1/4" bore shaper cutter intended for a spindle shaper that accepts a 1-1/4" spindle.
